Single-head atomizing sprinkler irrigation
The atomizing sprinkler introduces liquid into the interior of the nozzle through a high-speed rotating vortex, where it fully mixes with air under the influence of the vortex, forming fine mist droplets with an efficient, uniform, and delicate atomization effect.
This type of atomizing sprinkler is suitable for irrigating crops with high humidity requirements, such as greenhouse plants, flowers, and fruit trees, because the atomized droplets are very fine, preventing water flow impact damage while providing a sufficiently moist environment.

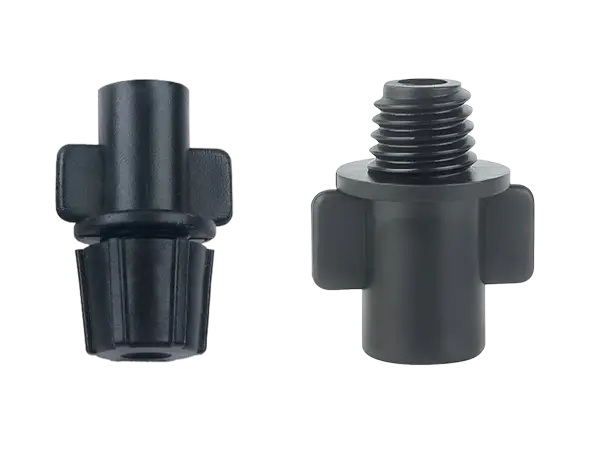

Single-Head Atomizing Sprinkler

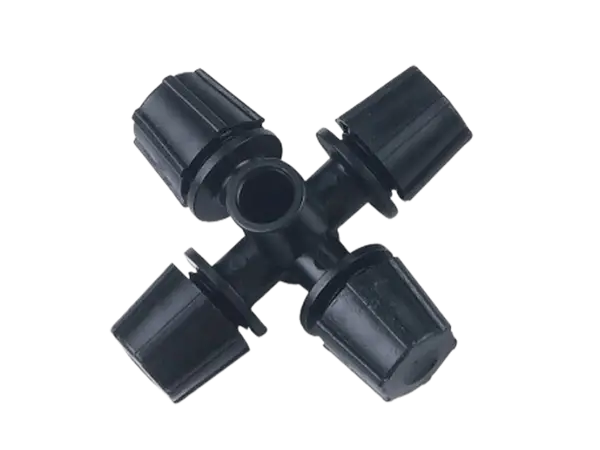

Four-Head Atomizing Sprinkler
Multi-Head Atomizing Sprinkler
The single-head atomizing sprinkler uses a single nozzle to convert water into a fine mist, which is then evenly distributed over the irrigation area. The sprinkler head has an excellent atomization effect, reducing water loss due to evaporation and wind.
This sprinkler head is suitable for greenhouse micro-spray nursery irrigation, ground seedling watering, and other fields, as well as situations where temperature and humidity control are needed, such as for fungi, vegetables, seedlings, and medicinal herbs.
The water flow enters the sprinkler head, and the water pressure transports the water flow from the wider part to the tapered threaded part, forming a vortex. The water follows the vortex into the sprinkler head and is sprayed out from the fine nozzle outlet, forming a water mist.
| Color | Black | Gray | Yellow | Blue | ||||
|---|---|---|---|---|---|---|---|---|
| Water Pressure (kPa) |
Flow (L/H) |
Radius (m) |
Radius (m) |
Radius (m) |
Radius (m) |
Radius (m) |
Radius (m) |
Radius (m) |
| 250 | 8.0 | 0.9–1 | 6.1 | 0.9–1 | 14.2 | 0.9–1 | 17.7 | 0.9–1 |
| 300 | 8.8 | 0.9–1 | 6.7 | 0.9–1 | 15.6 | 0.9–1 | 19.5 | 0.9–1 |
| 350 | 9.5 | 0.9–1 | 7.2 | 0.9–1 | 16.7 | 0.9–1 | 20.8 | 0.9–1 |
| 400 | 10.1 | 0.9–1 | 7.7 | 0.9–1 | 17.8 | 0.9–1 | 22.2 | 0.9–1 |
| Note: Range was measured when the nozzle was horizontal mounted. | ||||||||

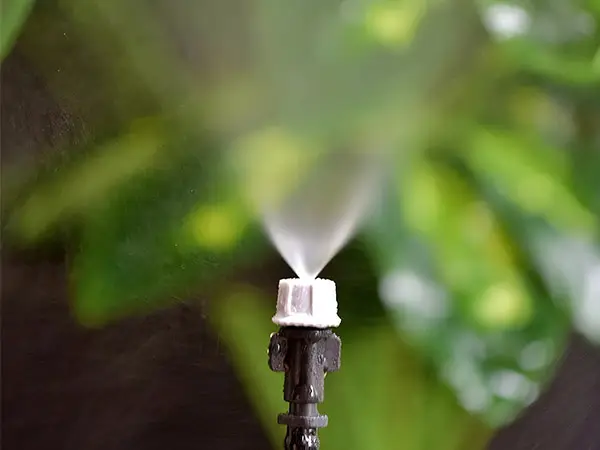

Single-head atomizing sprinkler irrigation

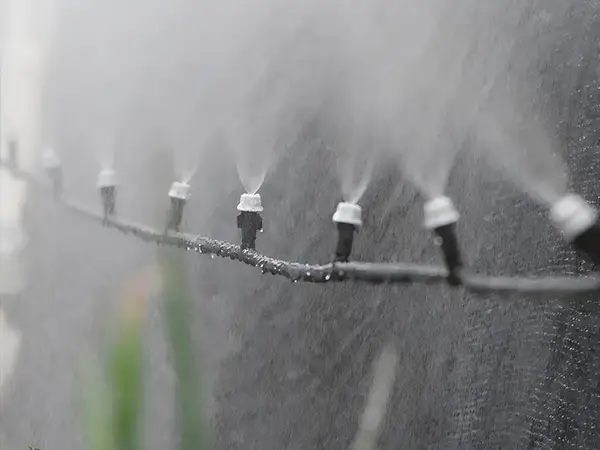

Multiple single-head atomizing sprinklers irrigation

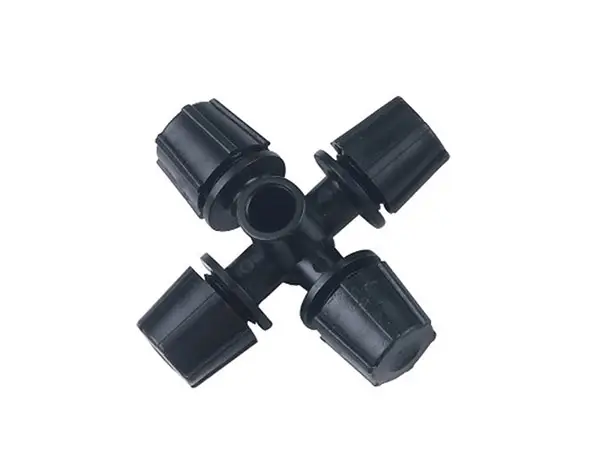

The four-head atomizing sprinkler has four fixed independent outlets, also known as a cross atomizing sprinkler. This design allows the nozzle to cover a wider area and provide a uniform and delicate atomization effect, suitable for agricultural applications such as greenhouses and orchards, providing crops with uniform and sufficient irrigation.
Water flow enters the sprinkler head, and water pressure transports the flow from the wider cross section to the conical threaded position connected to the nozzle section, forming a vortex. The water follows the vortex into the sprinkler head and is sprayed out from the fine nozzle outlet, forming a water mist.
| Color | Black | Gray | Yellow | Blue | ||||
|---|---|---|---|---|---|---|---|---|
| Water Pressure (kPa) | Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 250 | 31.9 | 0.9–1 | 24.4 | 0.9–1 | 56.7 | 0.9–1 | 70.6 | 0.9–1 |
| 300 | 35.0 | 0.9–1 | 26.7 | 0.9–1 | 62.2 | 0.9–1 | 77.8 | 0.9–1 |
| 350 | 37.8 | 0.9–1 | 28.6 | 0.9–1 | 66.7 | 0.9–1 | 83.3 | 0.9–1 |
| 400 | 40.3 | 0.9–1 | 30.6 | 0.9–1 | 71.0 | 0.9–1 | 88.9 | 0.9–1 |
| Note: Radius was measured at the same horizontal plane with the nozzle. | ||||||||
Ground plug-in four-head atomizing sprinkler irrigation

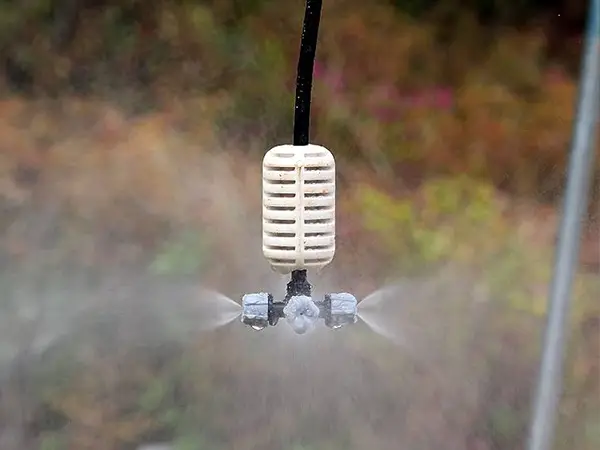

Hanging down four-head atomizing sprinkler irrigation

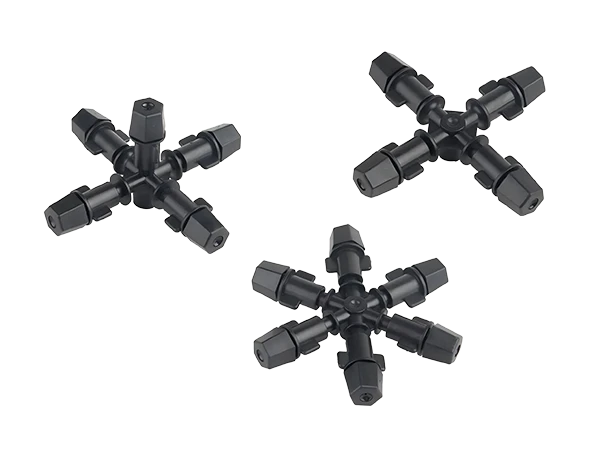

The multi-head atomizing sprinkler is a versatile irrigation tool composed of multiple nozzles that spray a fine mist evenly distributed over the irrigation area.
The sprinkler head can be freely disassembled and combined, with detachable four-head, five-head, six-head atomizing sprinklers available. Different flow rate nozzles can be replaced as needed to achieve different spray effects.
The water flow enters the sprinkler head, and the water pressure transports the water flow from the wider part to the tapered threaded part, forming a vortex. The water follows the vortex into the sprinkler head and is sprayed out from the fine nozzle outlet, forming a water mist.
| Color | Water Pressure | 250 kPa | 300 kPa | 350 kPa | 400 kPa |
|---|---|---|---|---|---|
| Black | Flow (L/H) | 31.9 | 35 | 37.8 | 40.3 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Gray | Flow (L/H) | 24.4 | 26.7 | 28.6 | 30.6 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Yellow | Flow (L/H) | 56.7 | 62.2 | 66.7 | 71.0 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Blue | Flow (L/H) | 70.6 | 77.8 | 83.3 | 88.9 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Note: Radius was measured at the same horizontal plane with the nozzle. | |||||
| Color | Water Pressure | 250 kPa | 300 kPa | 350 kPa | 400 kPa |
|---|---|---|---|---|---|
| Black | Flow (L/H) | 39.9 | 43.8 | 47.3 | 50.4 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Gray | Flow (L/H) | 30.5 | 33.4 | 35.8 | 38.3 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Yellow | Flow (L/H) | 70.9 | 77.8 | 83.4 | 88.8 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Blue | Flow (L/H) | 88.3 | 97.3 | 104.1 | 111.1 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Note: Radius was measured at the same horizontal plane with the nozzle. | |||||
| Color | Water Pressure | 250 kPa | 300 kPa | 350 kPa | 400 kPa |
|---|---|---|---|---|---|
| Black | Flow (L/H) | 47.9 | 52.5 | 56.7 | 60.5 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Gray | Flow (L/H) | 36.6 | 40.1 | 42.9 | 45.9 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Note: Radius was measured at the same horizontal plane with the nozzle. | |||||
| Color | Water Pressure | 250 kPa | 300 kPa | 350 kPa | 400 kPa |
|---|---|---|---|---|---|
| Black | Flow (L/H) | 55.8 | 61.3 | 66.2 | 70.5 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Gray | Flow (L/H) | 42.7 | 46.7 | 50.1 | 53.6 |
| Radius (M) | 0.9–1 | 0.9–1 | 0.9–1 | 0.9–1 | |
| Note: Radius was measured at the same horizontal plane with the nozzle. | |||||

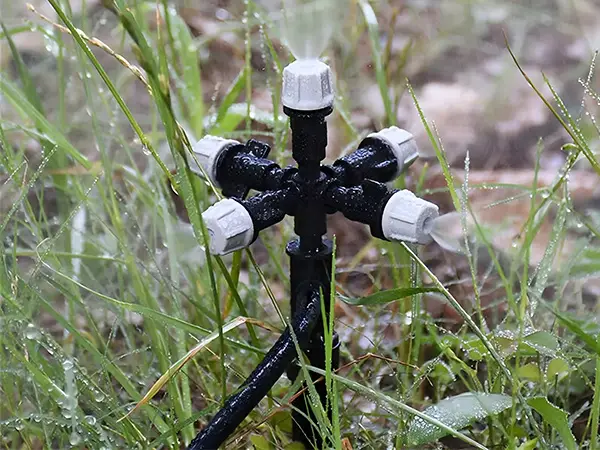

Five-head atomizing sprinkler irrigation

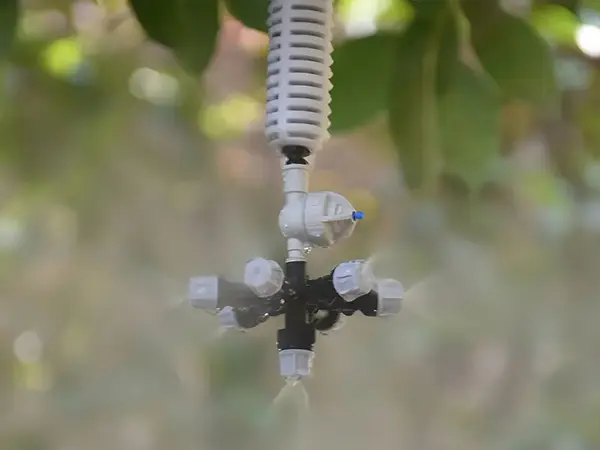

Multi-head atomizing sprinkler hanging down irrigation
