Super 10 Rotary Sprinkler – Multi-Hole Nozzle, Steel Ball Driven

The super 10 rotary sprinkler adopts a unique nozzle design with multiple outlets that spray an even water mist, protecting plant leaves from water droplet impact. It can spray 360 degrees without dead angles, and a reflector can be added for 180-degree spraying. It is widely used in field irrigation, as well as for the irrigation and germination of vegetables, flowers, and nursery crops.

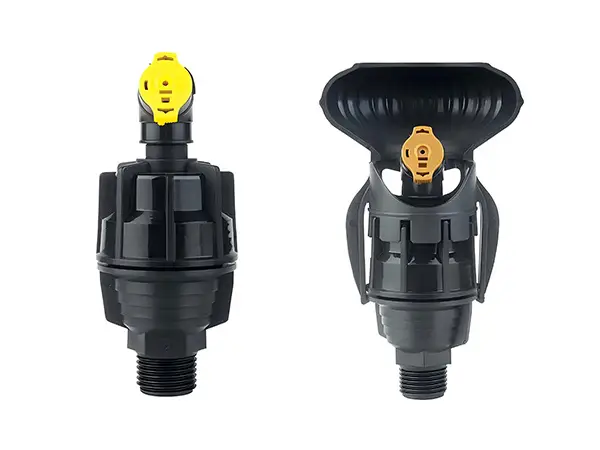

2 different types of super 10 rotary sprinklers

360-Degree Super 10 Rotary Sprinkler
180-Degree Super 10 Rotary Sprinkler

360-Degree Super 10 Rotary Sprinkler

Structure

Snap-on nozzle: Multi-hole design, even water mist spray, snap-on installation, easy to remove and clean
Upper housing: Compact design, robust enclosure, it protects internal components
Swivel plate and steel ball: Steel ball driven, swivel plate guides the steel ball and water, causing the nozzle to rotate
Lower housing
1/2" threaded interface: It connects with brackets and other equipment for water spraying.

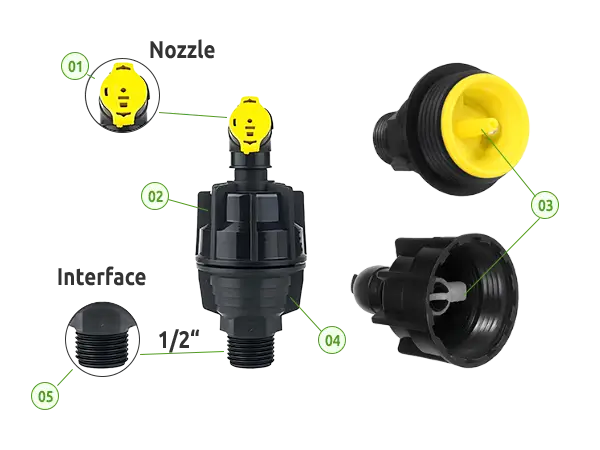

Detailed structural diagram of 360-degree super 10 rotary sprinkler

Features

Driven by steel ball, when the water pressure is low, the water flow at the nozzle forms a straight line.
When the pressure is higher (3 kPa – 4 kPa), the atomization effect is good, suitable for field irrigation, vegetable cultivation, and orchards.
Made of high-quality plastic, it offers a impact-resistant housing and a reliable structure, and has a long service life.
It has a compact, robust, enclosed, and protected steel ball drive mechanism.
Snap-on nozzle, easy maintenance.

Specifications

360-degree Super 10 rotary sprinkler dimensions image

Table 1: Specifications of 360-Degree Super 10 Rotary Sprinkler
Nozzle Color	Water Pressure	250 kPa	300 kPa	350 kPa	400 kPa
Yellow	Flow (L/H)	465	513	553	595
Yellow	Radius (M)	9.5–10
Green	Flow (L/H)	550	608	57	710
Green	Radius (M)	9.5–10
NOTE: Tested in breezeless outdoors, 1.2 m above the ground.

Gallery

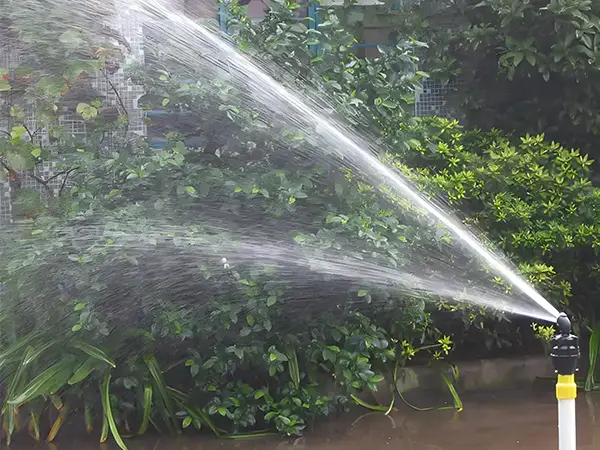

A 360-degree Super 10 rotary sprinkler in water spray

Sprinkler irrigation

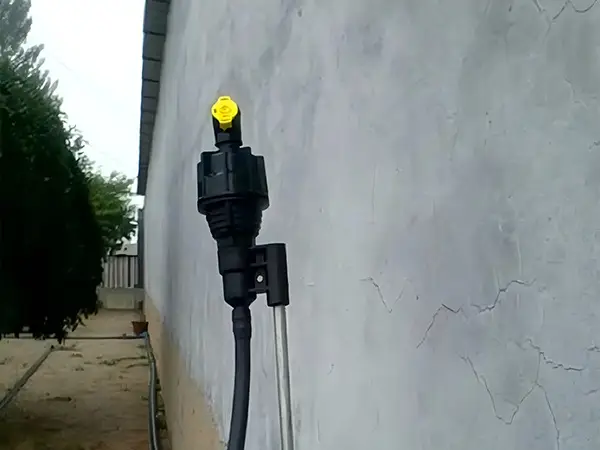

A 360-degree Super 10 rotary sprinkler is installed.

Bracket installation sprinkler irrigation

A 360-degree Super 10 rotary sprinkler is spraying water.

Tripod installation sprinkler irrigation

180-Degree Super 10 Rotary Sprinkler

Structure

Reflector: It reflects the water spray of the 360-degree nozzle, forming a 180-degree spray range
Snap-on nozzle: Multi-hole design, even water mist spray, snap-on installation, easy to remove and clean
Swivel plate and steel ball: Steel ball driven, swivel plate guides the steel ball and water, causing the nozzle to rotate
1/2" threaded interface: It connects with brackets and other equipment for water spraying.
Housing: Compact design, robust enclosure, it protects internal facilities.

Detailed structural diagram of 180-degree Super 10 rotary sprinkler

Features

Driven by steel ball, when the water pressure is low, the water flow at the nozzle forms a straight line.
Reflector design allows for irrigation of designated areas.
When the pressure is higher (3 kPa – 4 kPa), the atomization effect is good, suitable for field irrigation, vegetable cultivation, and orchards.
Made of high-quality plastic, it it offers a impact-resistant housing and a reliable structure, and has a long service life.
It has a compact, robust, enclosed, and protected steel ball drive mechanism.
Snap-on nozzle, easy maintenance.

Specifications

180-degree super 10 rotary sprinkler dimension diagram

Table 2: Specifications of 180-Degree Super 10 Rotary Sprinkler
Nozzle Color	Water Pressure	250 kPa	300 kPa	350 kPa	400 kPa
Brown	Flow (L/H)	391	433	473	506
Brown	Radius (M)	9.5–10
NOTE: Tested in breezeless outdoors, 1.2 m above the ground.

Gallery

Super 10 rotary sprinkler in water spray

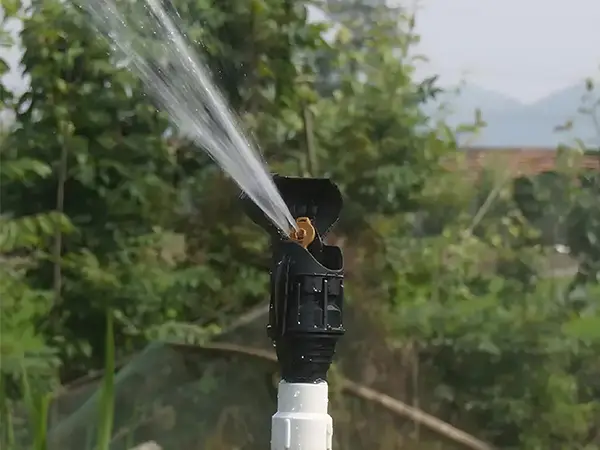

180-degree super 10 rotary sprinkler irrigation
