Meganet Sprinkler: High-Performance Pest Control Rotary Sprinkler for Field Crops

The meganet sprinkler, with its unique 'fortress' design, provides uniform water distribution and water-saving effects, and also features pest control and rotation functions. It is widely used in areas such as frost mitigation, orchard cooling and humidification, and leaf dust removal, making it an ideal choice for orchard and field crop irrigation.

5 different specifications of meganet sprinklers

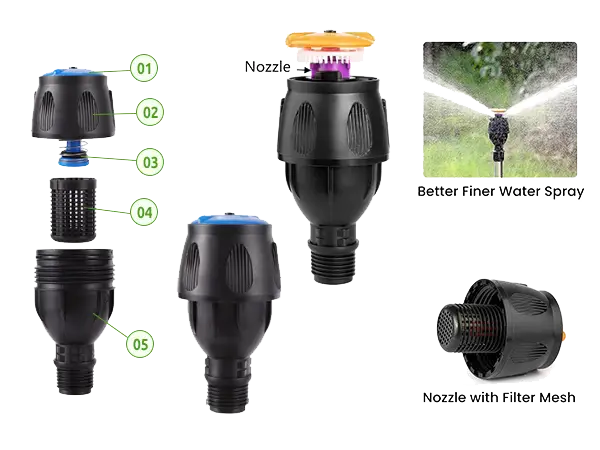

Structure

Concealed dual-hole nozzle: The nozzle pops out from under the top cover during operation and retracts when not in use, preventing external debris, insects, etc., from entering and clogging the nozzle.
Upper housing
Spring: The ejection device allows water to enter during operation, causing the spring to push the nozzle upward. When operation stops, the spring moves downward, closing the top cover.
Filter screen: It prevents impurities in the water source from entering and clogging the sprinkler.
Lower housing

Features

Unique 'fortress' and filter screen design can prevent insects and performance issues caused by poor water quality, improve irrigation uniformity, and enhance irrigation efficiency.
The meganet sprinkler has two identical nozzles, ensuring perfect rotational operation of the sprinkler.
The compact compression structure provides robustness to the sprinkler.
Made from anti-aging, UV-resistant materials, it is corrosion-resistant and can be used in various weather conditions.

Specifications

5 different nominal flow rates: 250, 350, 450, 550, 650 L/H. Nominal flow rates at 2.3 bar pressure
Recommended working pressure: 2.0 to 3.0 bar ( at the sprinkler head )
Recommended filtration: 400 micron / 40 mesh
Water trajectory angle: 12 degrees, 24 degrees
Inlet connection: 1/2" male thread, 20 mm ISO inlet ( for gluing to PVC riser )

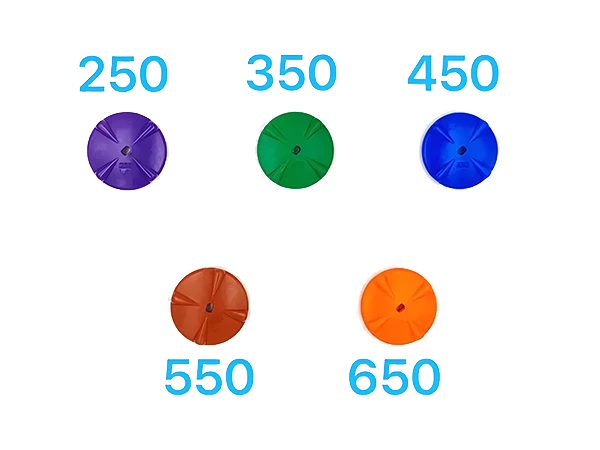

Color-coded locking pins and caps for easy identification

Different meganet sprinkler colors indicate different flow rates.

Gallery

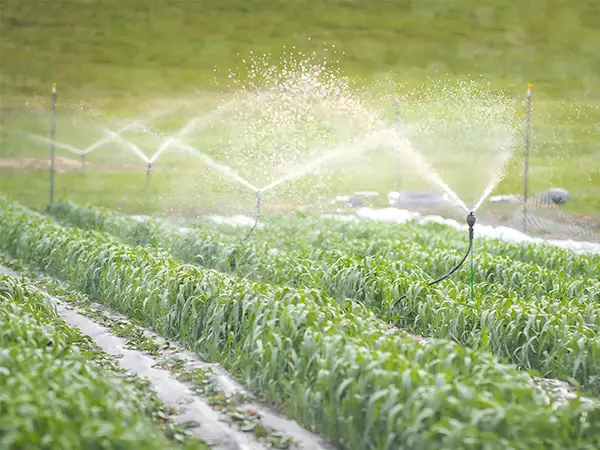

Many meganet sprinklers are spraying water in the field.

For field irrigation

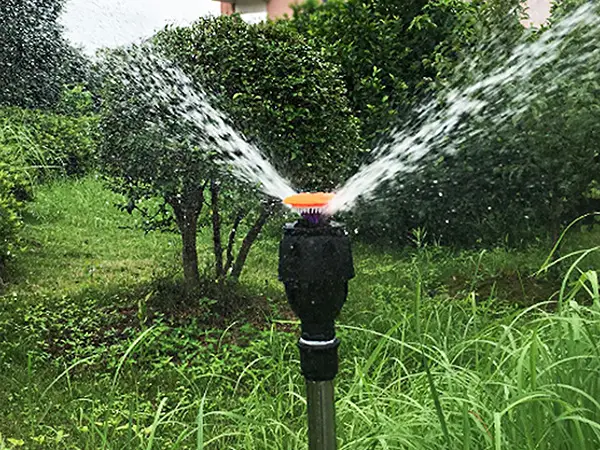

A meganet sprinkler is spraying water on trees

For tree irrigation

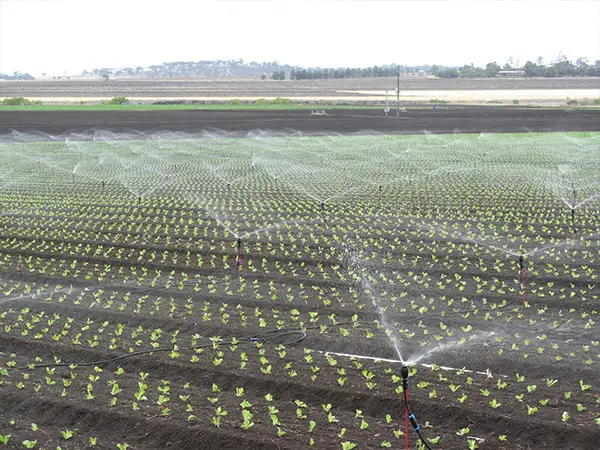

Many meganet sprinklers are spraying water on vegetables

For vegetable irrigation
