Ground plug-in installation for tree irrigation

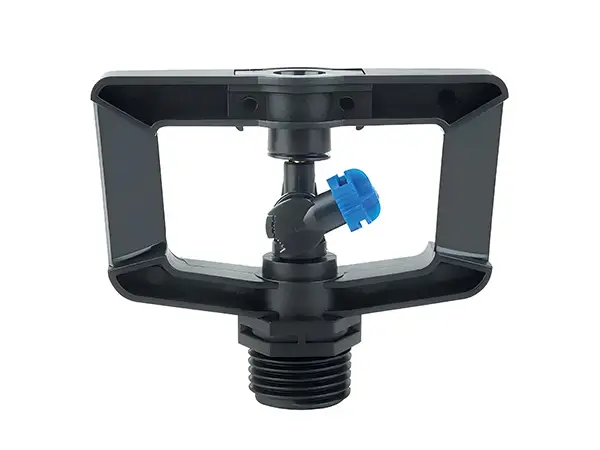

Our damping rotary sprinkler utilizes advanced damping mechanism technology, where the damping mechanism controls the speed of motion by dissipating or reducing the energy generated during movement.
In the damping rotary sprinkler, the damping device ensures the even distribution and coverage of water flow by controlling the rotation speed of the sprinkler, ensuring that every drop of water can evenly cover your farmland. It is mainly used for the irrigation of economic crops such as fruit trees, seedlings, vegetables, flowers, field crops, and garden grasslands.

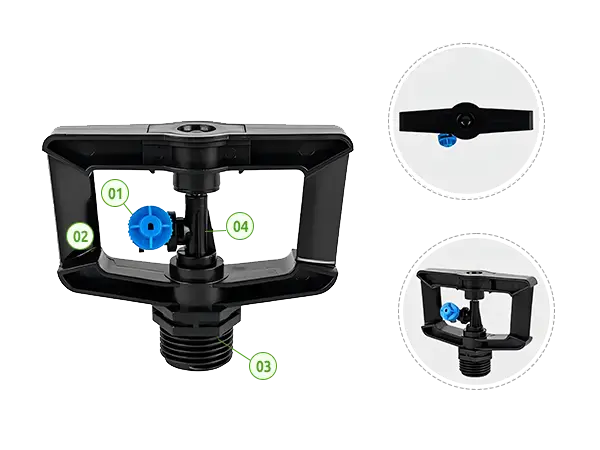

After water enters the sprinkler, the water pressure causes the sprinkler to rotate. To prevent excessive or uneven rotation, a damping device hidden within the rotating components of the sprinkler absorbs or converts the kinetic energy of the water flow to slow down the rotation speed of the sprinkler, ensuring an even distribution of water flow. As the sprinkler rotates, the water flow is evenly distributed over the surrounding area. Under the control of the damping device, the sprinkler maintains a moderate rotation speed, ensuring an even distribution of water flow within the spraying range. The damping device can also prevent the water flow from suddenly accelerating the rotation of the sprinkler, thereby ensuring the stability of irrigation.
| Nozzle Color | Water Pressure | 250 kPa | 300 kPa | 350 kPa |
|---|---|---|---|---|
| Blue | Flow (L/H) |
130 | 143.3 | 156.7 |
| Radius (M) |
6.5–7 | |||
| Green | Flow (L/H) |
175 | 193.3 | 210 |
| Radius (M) |
7–7.5 | |||
| Red | Flow (L/H) |
233.3 | 260 | 283.3 |
| Radius (M) |
6.5–7 | |||
| NOTE: Tested in breezeless outdoors, 1.2 m above the ground. | ||||

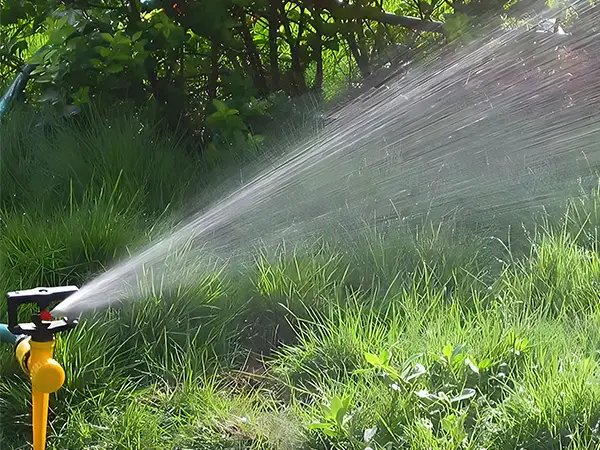

Ground plug-in installation for tree irrigation

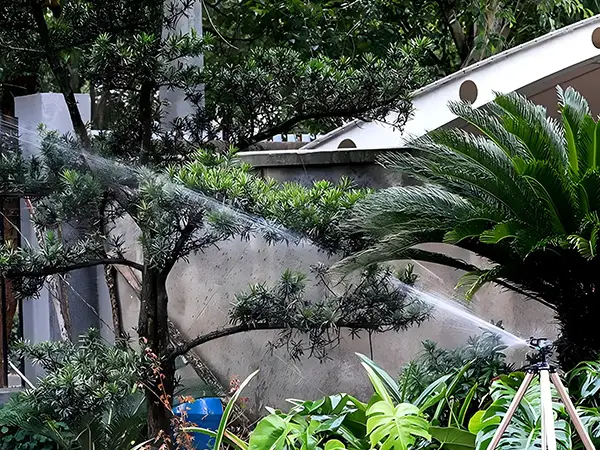

Bracket installation for tree irrigation
