Ground plug-in installation diagram
The square micro sprinkler is mainly composed of a square frame, a sprinkler head, and a nozzle, made of high-quality plastic material, with good wear resistance and corrosion resistance. It can be installed in-ground or suspended, and the fine water droplets can be sprayed uniformly in all directions at 360 degrees. It is widely used for irrigation in greenhouses, nurseries, orchards, and other places.

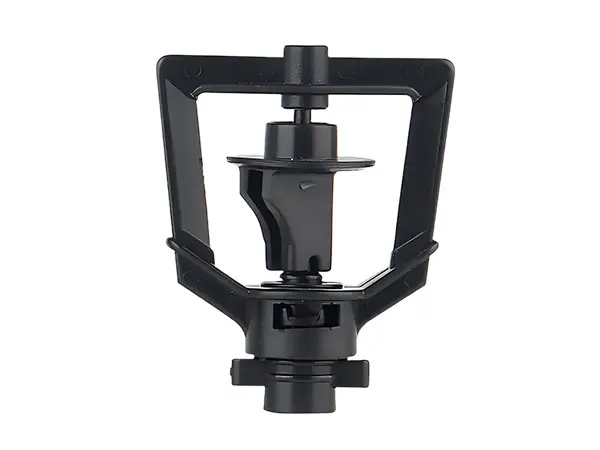

Square Rotating Micro sprinkler

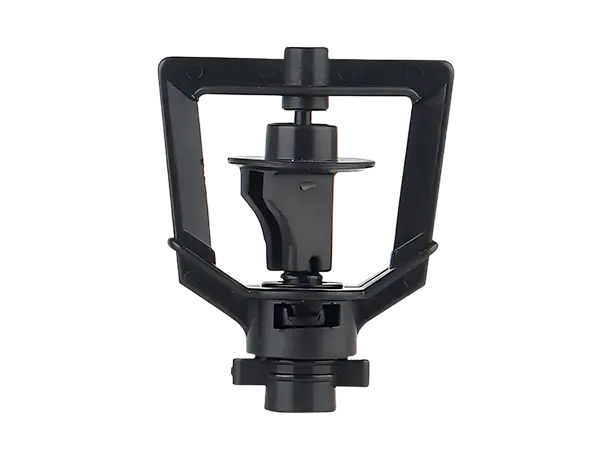

Square Refractive Micro Sprinkler

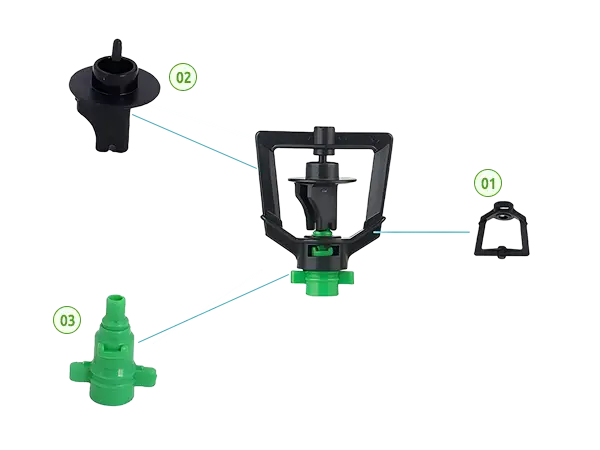

The square rotating micro sprinkler mainly consists of a square frame, a rotating sprinkler head, and a nozzle. Different nozzle colors represent different flow specifications. The rotating sprinkler head performs a 360-degree rotational spray under the action of water flow, evenly covering the vegetation with droplets, effectively improving water utilization and reducing water evaporation and drift. It is suitable for irrigation in greenhouses, orchards, landscaping, flower cultivation, and other applications.
The square rotating micro sprinkler can be combined with brackets, weights, anti-drip devices, connectors and other irrigation fitting combinations for ground plug-in installation or hanging down installation, with hanging down installation being more suitable for irrigation inside greenhouses and large sheds.

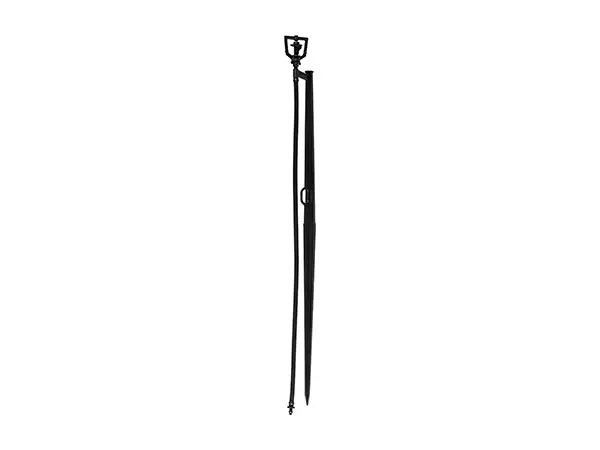

Ground plug-in installation diagram
Hanging down installation diagram
Hanging down installation accessories
| Nozzle Color | Black | Blue | Green | Red | Yellow | Brown | Gray | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water Pressure (MPa) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 0.15 | 22.8 | 2.4 | 36.7 | 2.8 | 53.9 | 2.8 | 72.2 | 3.0 | 96.7 | 3.2 | 120 | 3.5 | 144.2 | 3.5 |
| 0.20 | 26.7 | 2.4 | 43.9 | 3.0 | 64.4 | 3.0 | 86.1 | 3.2 | 115 | 3.4 | 143.3 | 3.6 | 170.8 | 3.6 |
| 0.25 | 30.6 | 2.6 | 50.0 | 3.1 | 73.9 | 3.2 | 98.3 | 3.4 | 130.8 | 3.7 | 162.5 | 4.0 | 193.3 | 4.0 |
| 0.30 | 33.9 | 2.8 | 55.6 | 3.2 | 81.7 | 3.4 | 109.7 | 3.5 | 145.8 | 3.8 | 179.2 | 4.2 | 216.7 | 4.2 |
| Note: Tested in breezeless outdoors, upright position, 0.4 m above the ground. We suggest that water pressure should above 0.2 Mpa for better spray evenness. | ||||||||||||||
| Nozzle Color | Black | Blue | Green | Red | Yellow | Brown | Gray | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water Pressure (MPa) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 0.15 | 22.8 | 3.0 | 36.7 | 3.2 | 53.9 | 3.7 | 72.2 | 3.9 | 96.7 | 4.0 | 120 | 4.0 | 144.2 | 4.0 |
| 0.20 | 26.7 | 3.3 | 43.9 | 3.5 | 64.4 | 4.0 | 86.1 | 4.3 | 115 | 4.3 | 143.3 | 4.3 | 170.8 | 4.3 |
| 0.25 | 30.6 | 3.5 | 50 | 3.7 | 73.9 | 4.2 | 98.3 | 4.5 | 130.8 | 4.5 | 162.5 | 4.5 | 193.3 | 4.5 |
| 0.30 | 33.9 | 3.6 | 55.6 | 4.0 | 81.7 | 4.4 | 109.7 | 4.7 | 145.8 | 4.8 | 179.2 | 4.8 | 216.7 | 4.8 |
| NOTE: Tested in breezeless outdoors, inverted position, 1.8 m above the ground. we suggest that water pressure should above 0.2 MPA for better spray evenness. | ||||||||||||||

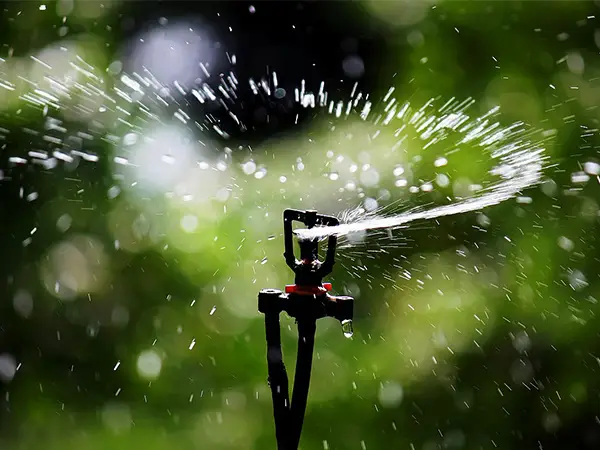

Upright ground plug-in installation

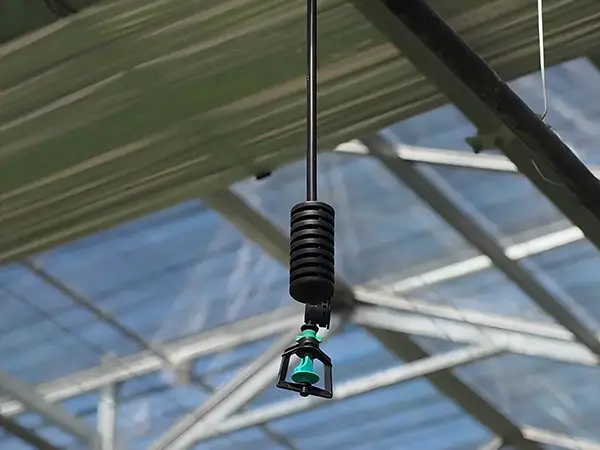

Hanging down installation

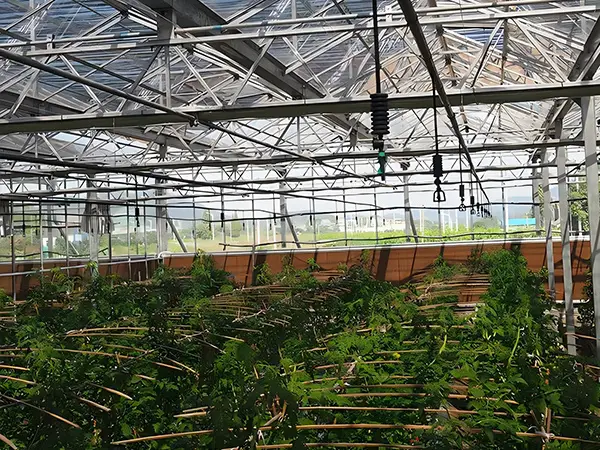

Greenhouse installation

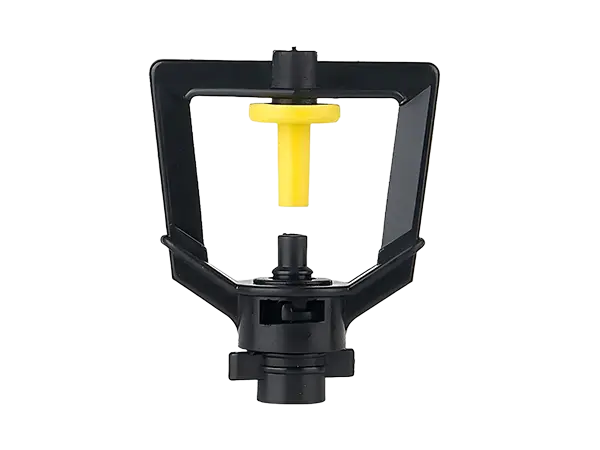

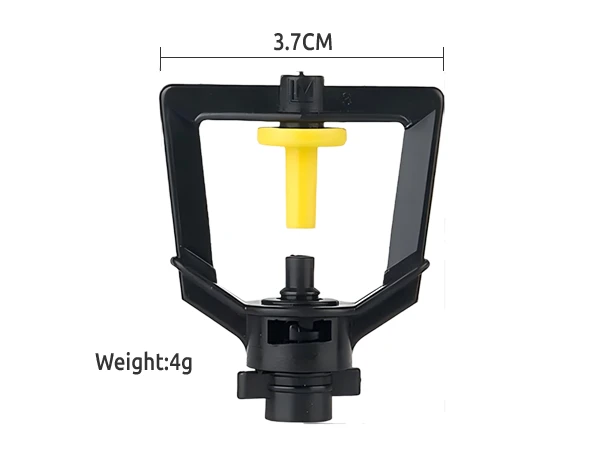

The square refractive micro sprinkler mainly consists of a square frame, a refractive sprinkler head, and a nozzle. Different colored nozzles represent different flow specifications.
Water is sprayed from the nozzle and hits the refractive sprinkler head to form fine mist, with each droplet approximately 150 microns in size, gently and evenly distributed over seeds or crops. It is suitable for the irrigation of seedlings or sensitive crops requiring precise irrigation.
The square refractive Micro sprinkler can be combined with brackets, weights, anti-drip devices, connectors and other irrigation accessories for ground plug-in installation or hanging down installation, with hanging down installation being more suitable for irrigation installation inside greenhouses and large sheds.

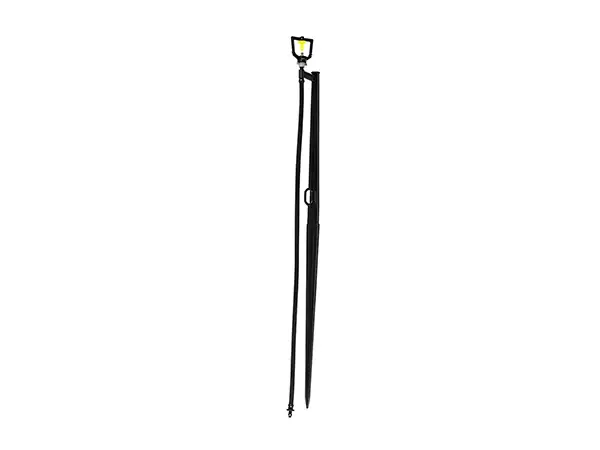

Ground plug-in installation diagram

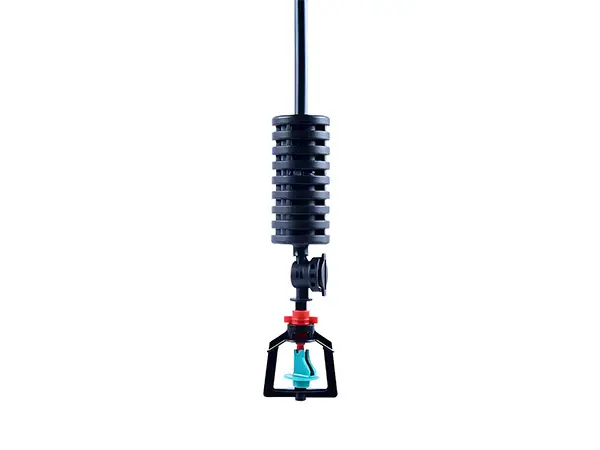

Hanging down installation diagram
| Nozzle Color | Water Pressure (MPa) |
0.15 | 0.20 | 0.25 | 0.30 |
|---|---|---|---|---|---|
| Black | Flow (L/H) |
22.8 | 26.7 | 30.6 | 33.9 |
| Radius (m) |
Hanging upside down: 1.0–1.1 Ground plug: 0.9–1.0 |
||||
| Blue | Flow (L/H) |
36.7 | 43.9 | 50 | 55.6 |
| Radius (m) |
Hanging upside down: 1.1–1.2 Ground plug: 1.0–1.1 |
||||
| Green | Flow (L/H) |
53.9 | 64.4 | 73.9 | 81.7 |
| Radius (m) |
Hanging upside down: 1.1–1.3 Ground plug: 1.0–1.2 |
||||
| Red | Flow (L/H) |
72.2 | 86.1 | 98.3 | 109.7 |
| Radius (m) |
Hanging upside down: 1.2–1.3 Ground plug: 1.1–1.2 |
||||
| Yellow | Flow (L/H) |
96.7 | 115 | 130.8 | 145.8 |
| Radius (m) |
Hanging upside down: 1.2–1.4 Ground plug: 1.1–1.3 |
||||
| Brown | Flow (L/H) |
120 | 143.3 | 162.5 | 179.2 |
| Radius (m) |
Hanging upside down: 1.3–1.4 Ground plug: 1.2–1.3 |
||||
| Gray | Flow (L/H) |
144.2 | 170.8 | 193.3 | 216.7 |
| Radius (m) |
Hanging upside down: 1.3–1.5 Ground plug: 1.2–1.4 |
||||
| NOTE: Tested in breezeless outdoors, inverted position, 1.8 m above the ground. we suggest that water pressure should above 0.2 MPA for better spray evenness. | |||||

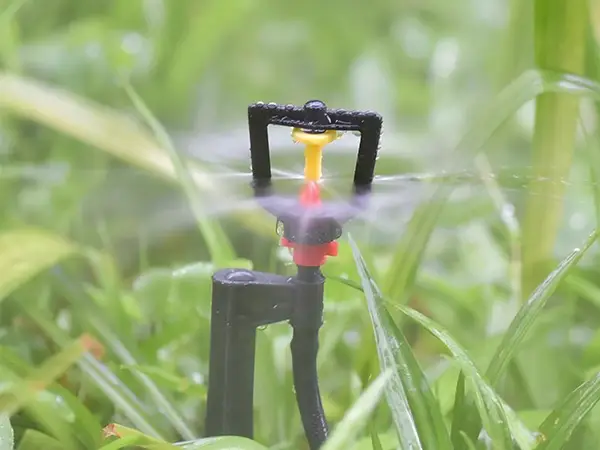

Ground plug-in installation irrigation

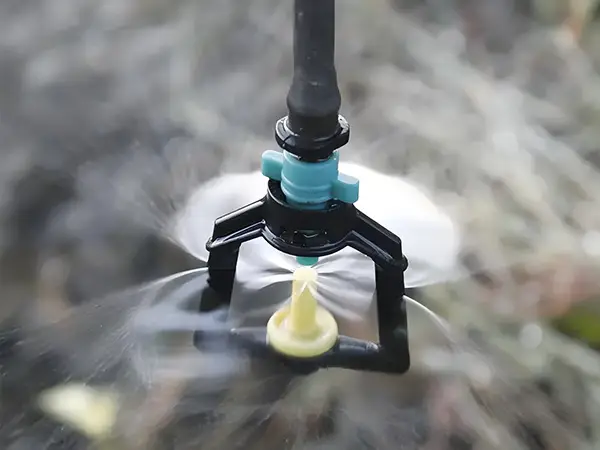

Hanging down installation irrigation
