Triangular wheel g-type rotating micro sprinkler irrigation

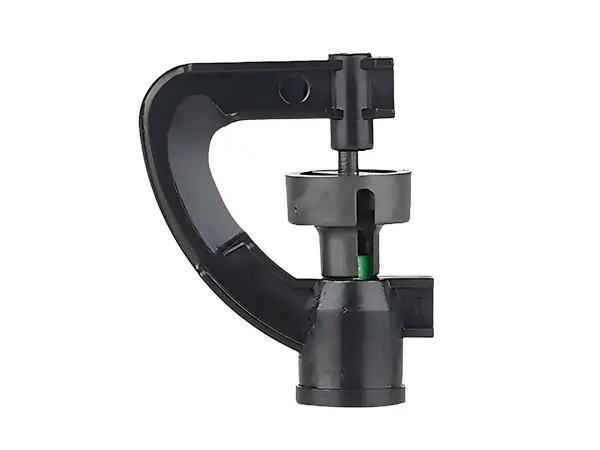

The sprinkler's frame resembles a 'G' shape, hence it is called a G-type micro sprinkler. It mainly consists of a nozzle, a bracket, a rotating sprinkler head, or a refractive sprinkler. The G-type frame provides firm support and stability to the sprinkler head, ensuring it does not wobble or tilt during operation. Made from high-quality anti-aging materials, it guarantees high performance and a long lifespan.
The G-type micro sprinkler finely and evenly sprays moisture, enhancing the efficiency of water-saving irrigation. It is widely used in greenhouses, farmlands, and other areas for the irrigation of vegetables, flowers, and fruit trees.
G-type Rotating Micro Sprinkler
G-type Refractive Micro Sprinkler
The G-type rotating micro sprinkler mainly consists of a G-type frame, a central shaft, a rotating sprinkler head, and a nozzle. When water flows into the sprinkler and is ejected from the nozzle, it drives the rotating sprinkler to rotate around the central shaft, achieving 360-degree uniform spraying. It is widely used in greenhouse micro-spraying, courtyard irrigation, garden nursery irrigation, ground seedling spraying, and other fields, as well as places requiring temperature and humidity control such as flowers, fungi, vegetables, seedlings, and medicinal materials.

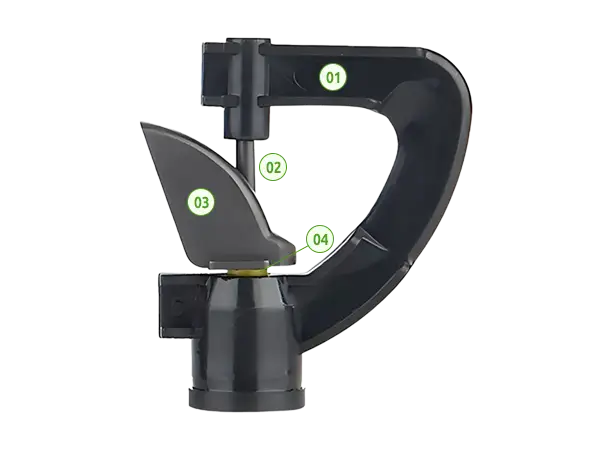

The duckbill-shaped rotating sprinkler has an arc structure. The water sprays from the nozzle, rotating 360-degree along the arc, with a higher parabola and longer range, making it more suitable for ground-inserted sprinkler irrigation installation.

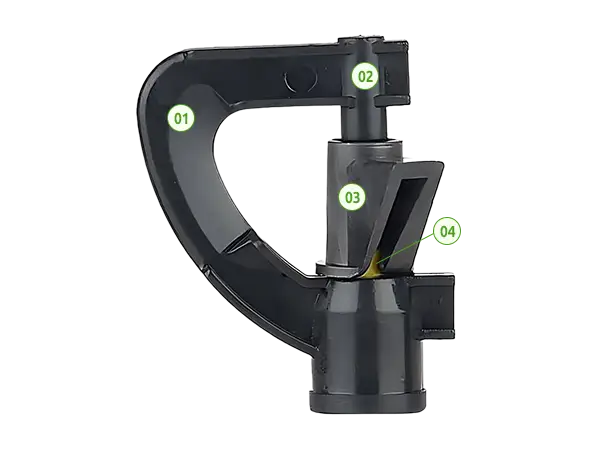

The surface of the triangular rotating sprinkler head is smooth and regular, with water spraying out from the nozzle in a straight line for 360-degree rotational spraying, making it more suitable for inverted installation in greenhouse irrigation.
The circular rotating sprinkler head has two outlets on both sides. Water is sprayed into the circular rotating sprinkler from the nozzle and sprayed out from the two outlets for 360-degree rotational spraying. It can be installed both on the ground and upside down.
| Water Pressure (kPa) | 150 | 200 | 250 | 300 | ||||
|---|---|---|---|---|---|---|---|---|
| Nozzle Color | Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| Blue | 37.8 | 2.8 | 45 | 3.0 | 51.0 | 3.2 | 55.6 | 3.4 |
| Green | 53.9 | 3.0 | 64.4 | 3.2 | 73.3 | 3.3 | 79.4 | 3.4 |
| Red | 72.8 | 3.3 | 86.1 | 3.5 | 97.8 | 3.6 | 107.2 | 3.7 |
| Yellow | 90.0 | 3.3 | 105.6 | 3.5 | 116.1 | 3.6 | 125.0 | 3.7 |
| Brown | 115.8 | 3.3 | 136.7 | 3.5 | 150.0 | 3.7 | 162.5 | 3.7 |
| Gray | 147.9 | 3.3 | 175.0 | 3.5 | 197.5 | 3.7 | 221.7 | 3.7 |
| Note: Tested in breezeless outdoors, 0.4 m above the ground upright. We suggest that water pressure should above 0.2 MPa for better spray evenness. | ||||||||

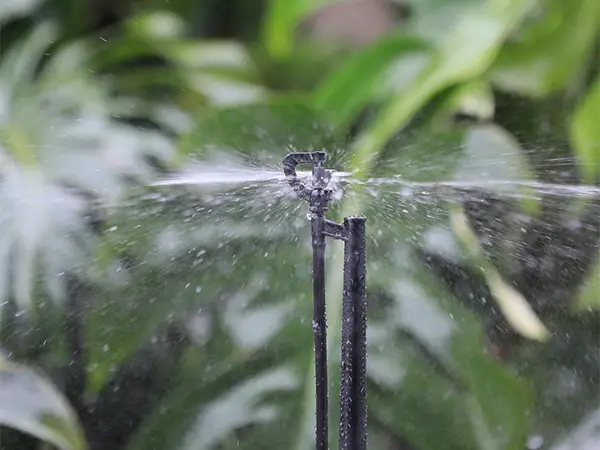

Triangular wheel g-type rotating micro sprinkler irrigation

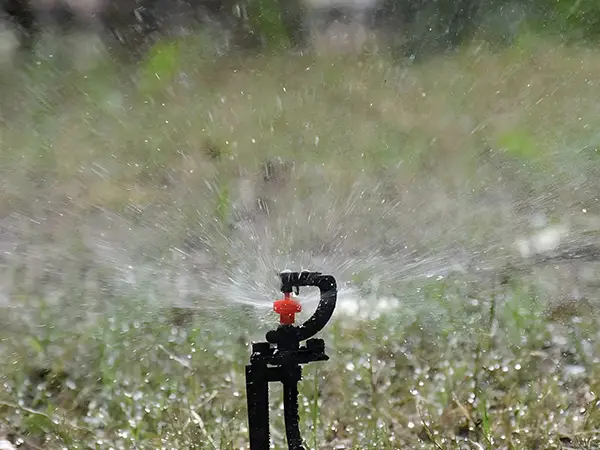

Circular wheel g-type rotating micro sprinkler irrigation
The G-type refractive micro sprinkler mainly consists of a G-type frame, a refractive sprinkler, and a nozzle. When water flows into the sprinkler and is ejected from the nozzle, it strikes the fixed refractive sprinkler, where the water is refracted and dispersed to form a mist, achieving 180-degree or 360-degree spraying. The water mist sprayed by the G-type refractive micro sprinkler is uniform and delicate, without impacting the plants. It is widely used for irrigation in greenhouses, garden nurseries, ground seedlings, and for crops that require controlled temperature and humidity or are sensitive.

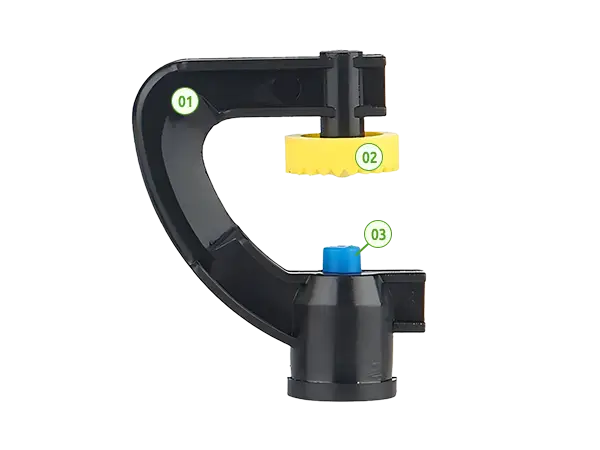

The refractive surface of the circular refractive sprinkler head has many uniform fine grooves. When water is ejected from the nozzle, it strikes the circular sprinkler under pressure and refracts outwards, spraying 360 degrees along the grooves. It is more suitable for ground insertion irrigation of various vegetation.

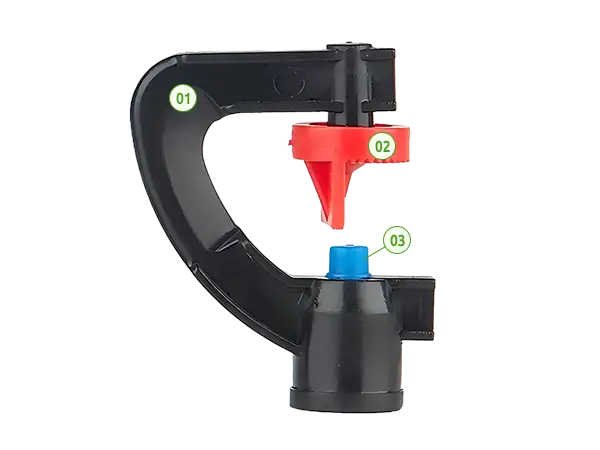

The refractive surface of the semicircular refractive sprinkler head has a baffle and many uniform fine grooves. When water is ejected from the nozzle, it strikes the circular sprinkler under pressure and refracts outwards, spraying 180 degrees along the grooves. It is more suitable for ground insertion irrigation in confined areas.

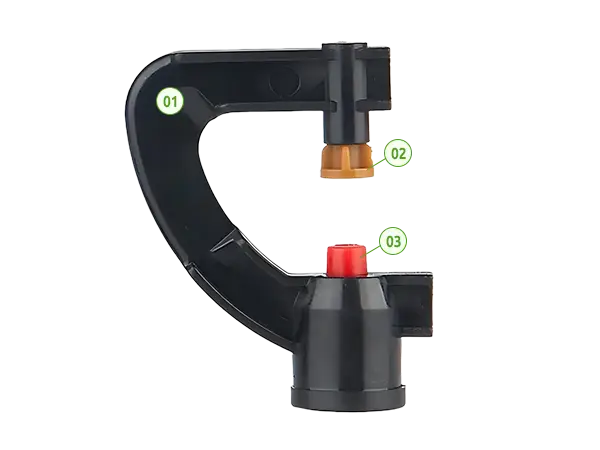

The cylindrical refractive sprinkler head has a flat refractive surface with a smaller refractive area. Water pressure strikes the sprinkler, refracting into finer water mist, achieving 360-degree uniform spraying, which reduces impact on vegetation and is suitable for irrigating seedlings or sensitive crops.
| Nozzle Color | Blue | Green | Red | Yellow | Brown | Gray | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water Pressure (kPa ) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 150 | 37.8 | 1.8 | 53.9 | 1.9 | 72.8 | 1.9 | 90.0 | 2.1 | 115.8 | 2.2 | 147.9 | 2.2 |
| 200 | 45.0 | 2.0 | 64.4 | 2.0 | 86.1 | 2.0 | 105.6 | 2.2 | 136.7 | 2.4 | 175.0 | 2.4 |
| 250 | 51.1 | 2.0 | 73.3 | 2.2 | 97.8 | 2.2 | 116.1 | 2.3 | 150.0 | 2.4 | 197.5 | 2.5 |
| 300 | 55.6 | 2.2 | 79.4 | 2.2 | 107.2 | 2.3 | 125 | 2.5 | 162.5 | 2.6 | 221.7 | 2.6 |
| Note: Tested in the breezeless outdoors, 0.4 m above the ground. We suggest that water pressure should above 0.2 Mpa for better spray evenness. | ||||||||||||
| Nozzle color | Blue | Green | Red | Yellow | Brown | Gray | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water pressure (kPa) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 150 | 37.8 | 1.1 | 53.9 | 1.2 | 72.8 | 1.3 | 90.0 | 1.3 | 115.8 | 1.4 | 147.9 | 1.5 |
| 200 | 45.0 | 1.1 | 64.4 | 1.2 | 86.1 | 1.3 | 105.6 | 1.3 | 136.7 | 1.4 | 175.0 | 1.5 |
| 250 | 51.1 | 1.2 | 73.3 | 1.3 | 97.8 | 1.4 | 116.1 | 1.4 | 150.0 | 1.5 | 197.5 | 1.6 |
| 300 | 55.6 | 1.2 | 79.4 | 1.3 | 107.2 | 1.4 | 125 | 1.4 | 162.5 | 1.5 | 221.7 | 1.6 |
| Note: Tested in breezeless outdoors, 0.4 m above the ground upright. We suggest that water pressure should above 0.2 Mpa for better spray evenness. | ||||||||||||

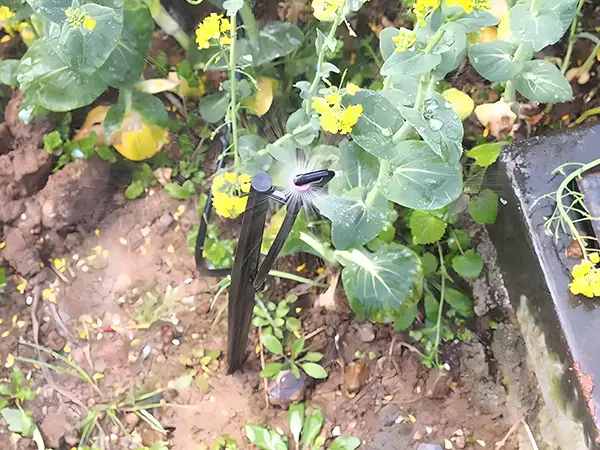

360-degree G-type refractive micro sprinkler in irrigation field irrigation

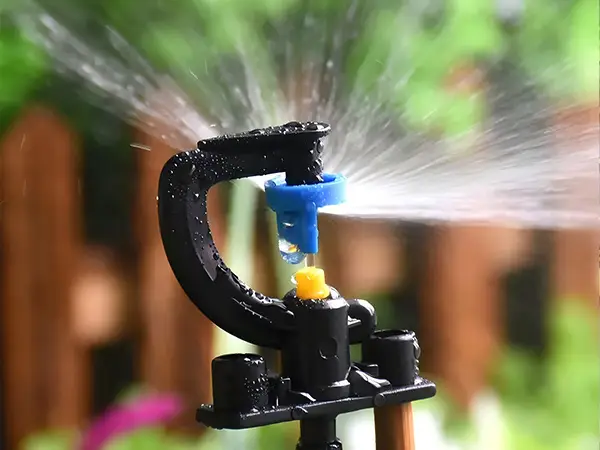

180-degree G-type refractive micro sprinkler irrigation

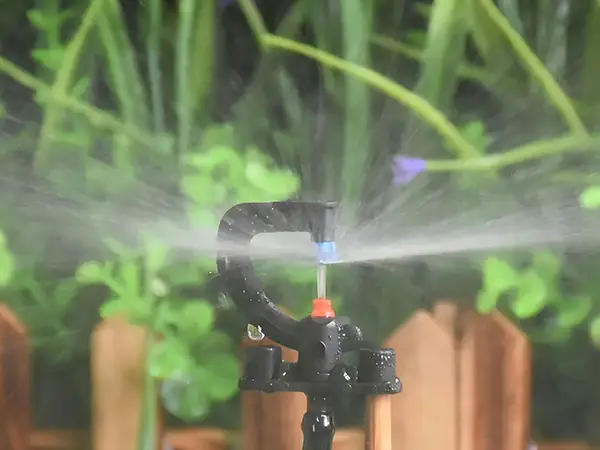

Atomizing G-type refractive micro sprinkler irrigation
