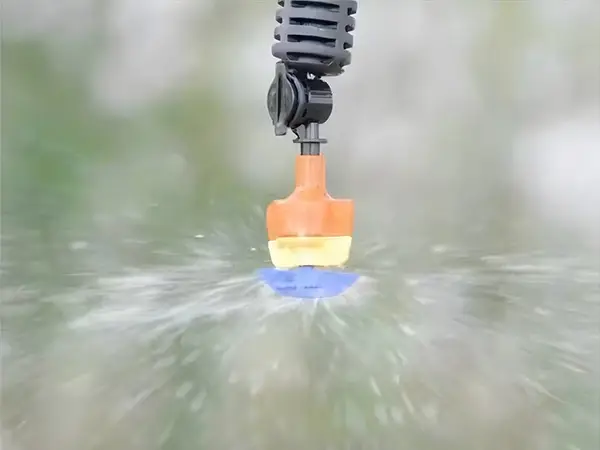

Hanging down irrigation

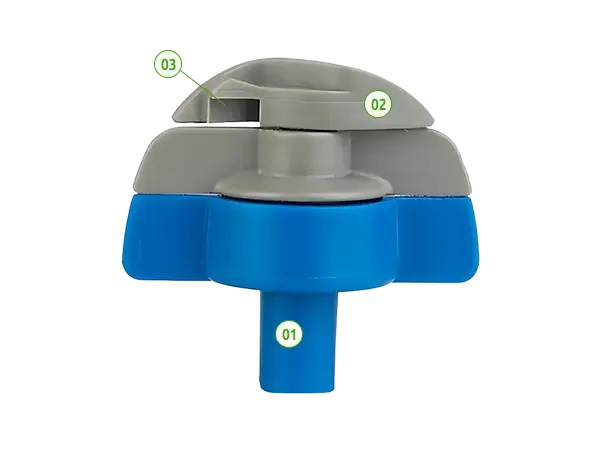

Unlike traditional sprinklers, the frameless rotary micro sprinkler does not require any frame or support structure to maintain its rotation. It is often installed in a hanging down manner, with water entering the nozzle and exiting through the outlet. The rotating sprinkler performs a 360-degree rotation spray with the movement of the water flow, providing a wide spray area and uniform water distribution for your irrigation, reducing water waste, and promoting crop growth.
It is suitable for micro-spraying fields such as multi-span greenhouses, garden irrigation, nursery irrigation, and ground seedling watering.
| Nozzle Color | Blue | Green | Red | Yellow | Brown | Gray | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water Pressure (kpa) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
| 150 | 33.4 | 3.2 | 53.6 | 3.2 | 69.7 | 3.5 | 81.80 | 3.5 | 94.1 | 3.5 | 99.8 | 3.6 |
| 200 | 39.7 | 3.5 | 63.2 | 3.5 | 81.3 | 3.8 | 96.3 | 4.0 | 111.4 | 4.0 | 126.8 | 3.8 |
| 250 | 44.8 | 3.5 | 71.7 | 3.7 | 91.0 | 4.0 | 108.3 | 4.2 | 125.8 | 4.3 | 143.4 | 4.0 |
| 300 | 48.9 | 3.7 | 79.4 | 3.8 | 103.6 | 4.3 | 117.6 | 4.5 | 139.6 | 4.5 | 139.6 | 4.5 |
| Note: Tested in the breezeless outdoors, 1.8 m above the ground. We suggest that water pressure should above 0.2 Mpa for better spray evenness. | ||||||||||||

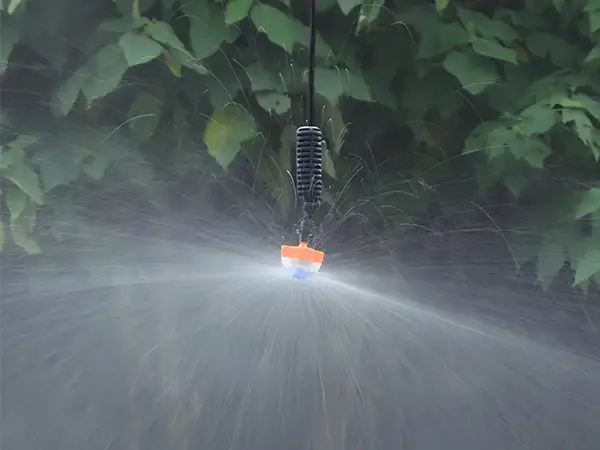

Hanging down irrigation
Hanging down irrigation
